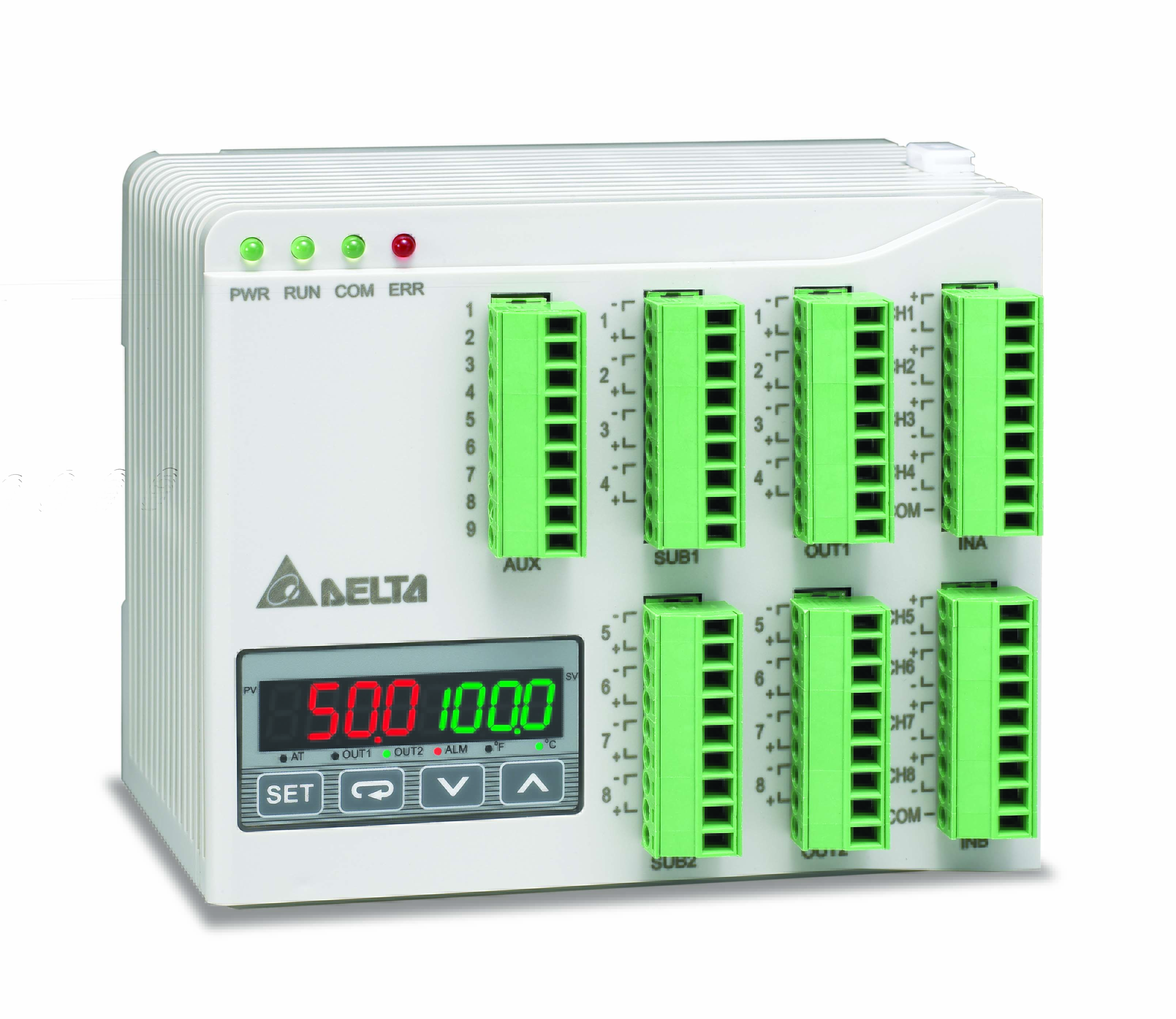

Multi-Channel Controller
- Availability: In Stock
Multichannel Temperature Controller is an ideal instrument virtually for any industry or application, where multi-channel temperatures have to be measured and monitored from a convenient and centralized place. This compact and highly reliable instrument can accept any one type of RTD or thermocouple sensors.
..Multichannel Temperature Controller is an ideal instrument virtually for any industry or application, where multi-channel temperatures have to be measured and monitored from a convenient and centralized place. This compact and highly reliable instrument can accept any one type of RTD or thermocouple sensors.
Product Specification
| Type | Digital |
| Dimension | 96 x192 x 150 mm |
| Inputs | Thermocouple Type J, K , R , T |
| Resolution | 0.1 C for RTD |
| Accuracy | 0.1 C / 0.2 Degree C |
| Power Supply | 230 V AC / 110 V AC / 12 V DC / 24 V DC |
| No of Channels | 16, 32 |
Features:
•Built-in automatic cold junction compensation circuitry
•<0.30C indication drift
•Open sensor display indication
•Wide angle easy-to-read 12.5mm high 7 segments LED Display
Specifications:
| Inputs | Thermocouple Type J, K , R , T, S / RTD Pt100 / 4-20 mA, 0-100 mV factory set |
| Resolution | 0.1 C for RTD 1 C for thermocouple |
| Accuracy | 0.1 C / 0.2 C /- 1 digit (range 199.9 / 399.9) 1 C /- 1 C for thermocouple |
| Output | Open Collector |
| Supply | 230 V AC / 110 V AC / 12 V DC / 24 V DC. |
| Size | 96 x192 x 150 mm. (Up to 16 Channels) 192x192x150 mm (Up to 32 Channels) |
| Display | 7 segments LED Display |
