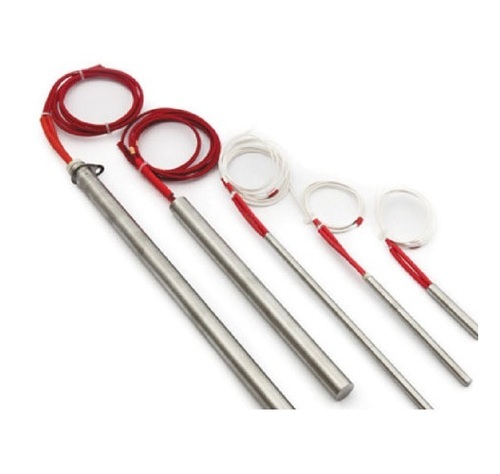

High-Density Cartridge Heaters
- Availability: In Stock
High-Density Cartridge Heaters are developed for heating applications where sheath temperatures not exceeding 3000c with maximum watt densities of 30 to 45 watts per square inch depending on applications.
..High-Density Cartridge Heaters are developed for heating applications where sheath temperatures not exceeding 3000c with maximum watt densities of 30 to 45 watts per square inch depending on applications.
|
Brand Name |
HYTMAYON |
Product Specification
| Sheath Material | S.S.304,S.S.316,Brass,Incoloy |
| Variation (in mm) | 8mm to 38mm |
| Minimum Length | 50mm |
| Maximum Length | 2000mm |
| Lead Wires | Crimped on Leads PTFE/FG wire,Direct Leads PTFE/FG wire |
| Lead Length | Standard 250mm,Longer leads available as per requirement |
| Unheated Length | 15mm at the Bottom end,and 15mm at the wire end. Larger lengths available on request |
| Sheath Temperature | 300 degree C,350 degree C,400 degree C,450 degree C |
| Insulation Material | High purity MgO |
| Heating Element | Ni/Cr 8020 |
| Voltage Rating | 12 V to 440 V |
| Power Rating | Upto 30 Watts/in2 |
| Power Tolerance | +-10 percent |
| High Voltage Strength | 500 V - AC |
| Insulation Resistance | 5 Mega |
| Current Leakage | Less Than 0.5mA |
Specification:

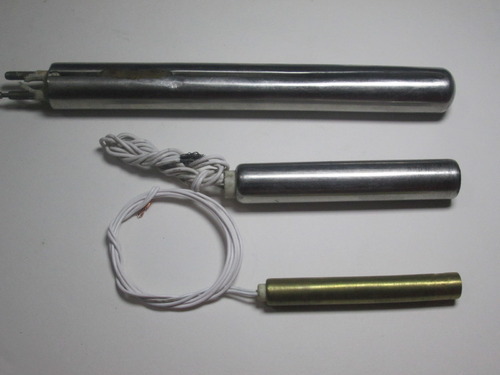

- Available in different lengths from 50mm to 1200mm, sheath metal brass, SS304, SS316, Incoloy 800, copper
- Watt density 20 watts per sq inch
- Flexible leads
- Noncorrosive material
- Diameter option from 6mm to 30mm
- Maximum sheath temp 300° C
Application:
- Packaging Machinery
- Heat Sealing
- Labeling Machines
- Hot Stamping
- Plastic Injection
- Glue guns and Wax pots
- Shoe Machinery
- Heating of gases and liquids
